Contact form |

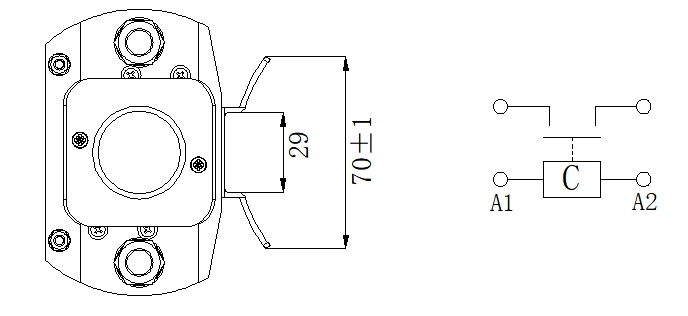

1D (SPST-NO) |
|
Contact material |
Silver alloy |
|
Contact load (resistive load) |
600A×24VDC（DC-1） |
|
Contact pressure drop |
≤80mV@400A |
|
Insulation resistance |
Min. 100MΩ at 500VDC |
|
Dielectric Strength |
1000VAC 50 HZ/60 HZ (1 minute) Leakage current less than 1mA |
|
Pulse width |
/ ( Only applicable to magnetic holding series) |
|
Pull in time |
Max. 40mSec. |
|
Release time |
Max. 40mSec. |
|
Pull-in voltage (DC V) |
≤70% US |
|
Release voltage (DC V) |
≥10% US |
|
Operating ambient temperature |
-25℃~+60℃ |
|
Storage temperature |
-40℃~+65℃ |
|
Relative humidity |
20%~90% RH |
|
Mechanical life |
≥150,000 Times |
|
Class of pollution |
III |
|
Working system |
Continuous working system |
|
Vibration |
（10～200）Hz acceleration ≤3.5g |
|
to attack |
（60） Times / minute acceleration 6g |
