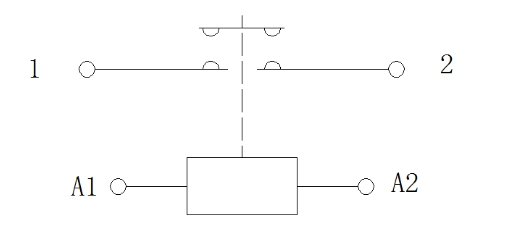

contact form |
1D (SPST-NO) |
|
Contact material |
Silver alloy |
|
Contact load (resistive load) |
1000A |
|
Instantaneous maximum current |
4000A ≤1s |
|
Contact pressure drop |
≤80mV@100A |
|
Temperature rise at outlet （K）
Coil temperature rise （K） |
≤65K
≤85K |
|
Insulation resistance |
Min. 100MΩ at 500VDC |
|
Dielectric Strength |
1000VAC 50 HZ/60 HZ (1 minute) Leakage current less than 1mA |
|
Pull in time |
Max. 40mS |
|
Release time |
Max. 50mS |
|
pull-in voltage (DC V) |
≤75% US |
|
Release voltage (DC V) |
≥10% US |
|
Operating ambient temperature |
-25℃~+60℃ |
|
Storage temperature |
-40℃~+65℃ |
|
relative humidity |
20%~90% RH |
|
Mechanical life |
≥300000 Times |
|
class of pollution |
III |
|
Working system |
Continuous working system |
|
Vibration |
（10～200）Hz acceleration ≤3.5g |
|
to attack |
（60） Times / minute acceleration 6g |
|

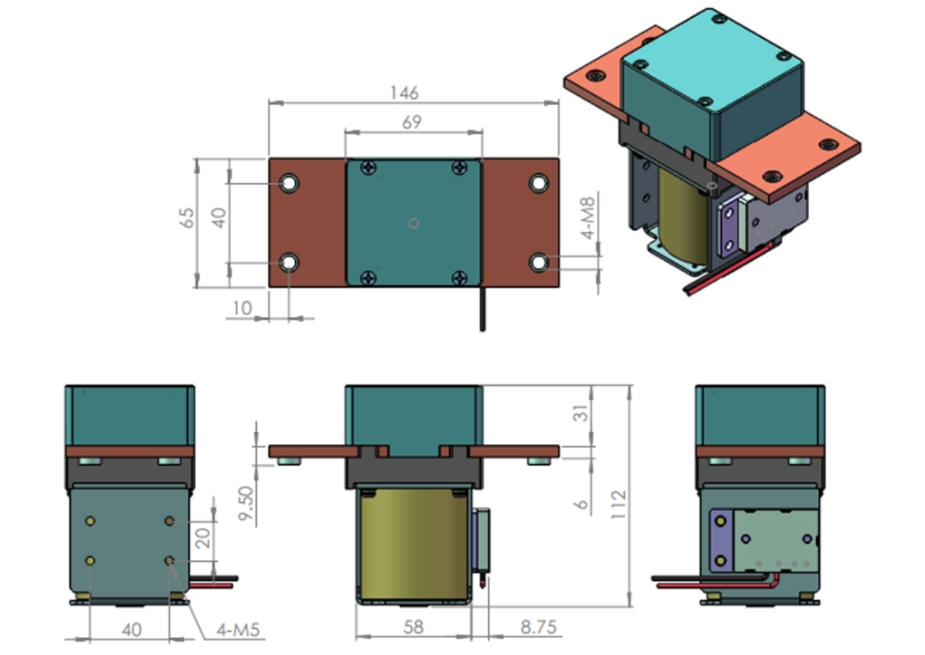

Installation mode |
arbitrarily |
